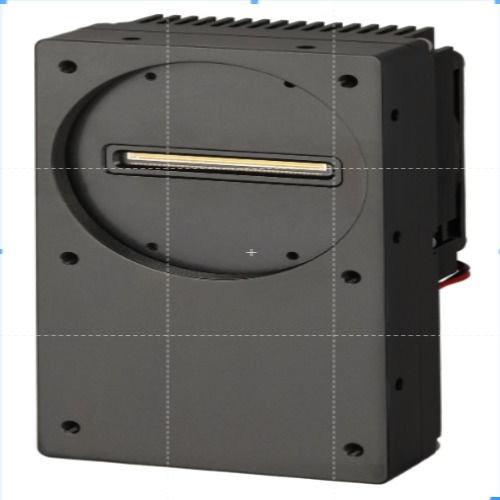

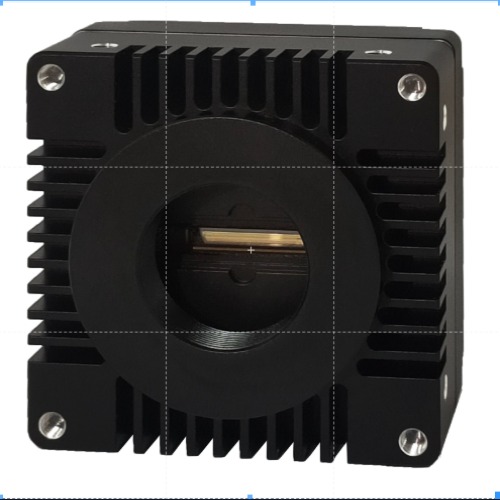

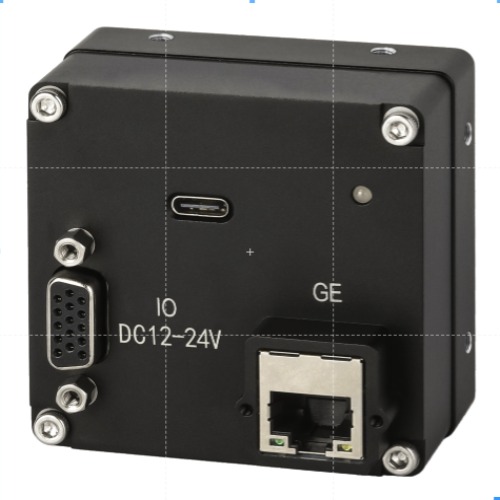

Industrial Line Scan Camera

Name: Industrial Line Scan Camera
Brand: EARTH TEKNIKS PRIVATE LIMITED
Price: 53000.0 INR
Availability: InStock

Price 53000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Industrial Line Scan Camera Specification

Power
24V DC

Usage
Material surface inspection, web inspection, print quality checking

Function
High-speed line scan imaging for quality inspection

Accuracy
Up to 0.01 mm

Operating Mode
Continuous / Triggered

Control Mode
Manual / Automatic

Standard
Industrial Grade, CE Certified

Resolution
2048 to 4096 pixels

Dimensions
110 mm x 56 mm x 56 mm

Operating Temperature
0°C to 45°C

Line Rate
Up to 80 kHz

Protection
IP40 Rated

Image Sensor Type
CMOS Line Scan Sensor

Pixel Size
7 µm x 7 µm

Lens Mount
C-Mount

Weight
Approx. 600 g

Interface
GigE, Camera Link

Industrial Line Scan Camera Trade Information

Minimum Order Quantity
1 Unit

Supply Ability
100 Units Per Month

Delivery Time
7 Days

About Industrial Line Scan Camera

Complete Product Lines With Stable Performance And Functional FeaturesResolution of 2K, supporting GigE, Camera Link, and other data interfaces, available in mono/color image modes, with a maximum line rate of 140kHz. Supports various algorithm processing technologies such as pixel binning, flat field correction, disparity correction, and spatial correction.

4K, supporting GigE, Camera Link, CoaXPress, and other data interfaces, available in mono/color image modes, with a maximum line rate of 250kHz. Supports various algorithm processing technologies such as binning, flat field correction, disparity correction, and spatial correction.

8K, supporting GigE, 10GigE, Camera Link, CoaXPress, and other data interfaces, available in mono/color image modes, with a maximum line rate of 284kHz. Supports various algorithm processing technologies such as flat field correction, spatial correction, disparity correction, white balance, and electronic cooling function.

16K, supporting 10GigE, Camera Link, CoaXPress, and other data interfaces, available in mono/color image modes, with a maximum line rate of 284kHz. Supports various algorithm processing technologies such as flat field correction, spatial correction, bias control, and electronic cooling function.

Exceptional Imaging Accuracy

Equipped with a CMOS line scan sensor and adjustable resolution settings (2048-4096 pixels), this camera ensures precise defect detection. Its fine 7 m x 7 m pixel size contributes to remarkable accuracy-up to 0.01 mm-making it highly effective for detailed surface and print inspection tasks across multiple industries.

Versatile Industrial Integration

Designed for easy integration, the camera features both GigE and Camera Link interfaces and a common C-Mount lens fitting. These attributes streamline system configuration for users such as manufacturers, exporters, and system integrators in India and globally. The robust construction supports continuous operation in production environments.

Reliable Operation in Challenging Environments

The camera maintains optimal performance across a temperature range of 0C to 45C and features an IP40 enclosure. Its industrial-grade design and CE certification make it a dependable solution for quality control processes, ensuring longevity and consistent results even under intensive use.

FAQ's of Industrial Line Scan Camera:

Q: How can the camera be integrated into existing industrial inspection systems?

A: The line scan camera is equipped with GigE and Camera Link interfaces, which allows seamless integration with most industrial inspection setups. Its C-Mount lens fitting offers compatibility with a broad range of optics, and standard 24V DC power ensures straightforward installation. Both manual and automatic control modes are supported for process adaptability.

Q: What types of applications are best suited for this line scan camera?

A: This camera excels in high-speed imaging applications including material surface inspection, web inspection, and print quality checking. Its high resolution and fast line rate enable precise defect detection and quality assurance, making it suitable for manufacturers, suppliers, and service providers across various industrial sectors.

Q: When should you use a line scan camera over an area scan camera?

A: A line scan camera is ideal when inspecting continuously moving materials or surfaces, such as webs of paper, textiles, or printed materials. It offers superior accuracy and speed for such applications, as it captures images line by line, ensuring high-resolution analysis over large or uninterrupted surfaces.

Q: Where is the industrial line scan camera commonly installed?

A: These cameras are typically mounted over conveyor systems, production lines, or inspection stations where continuous monitoring of materials is required. The compact dimensions (110 mm x 56 mm x 56 mm) and sturdy design make them suitable for various automated environments in factories or processing plants.

Q: What benefits does the high line rate provide for quality inspection?

A: With a line rate of up to 80 kHz, the camera can capture fast-moving products without motion blur, ensuring consistent and accurate inspection results. This high speed is crucial for real-time quality control in high-throughput industrial applications, reducing errors and enhancing overall efficiency.

Q: How is precision maintained during operation?

A: The advanced CMOS sensor delivers high-resolution imaging and a fine pixel size of 7 m x 7 m, achieving accuracy up to 0.01 mm. Control modes (manual/automatic) further refine image acquisition, while the camera's stable operating temperature and IP40-rated enclosure preserve imaging integrity.
